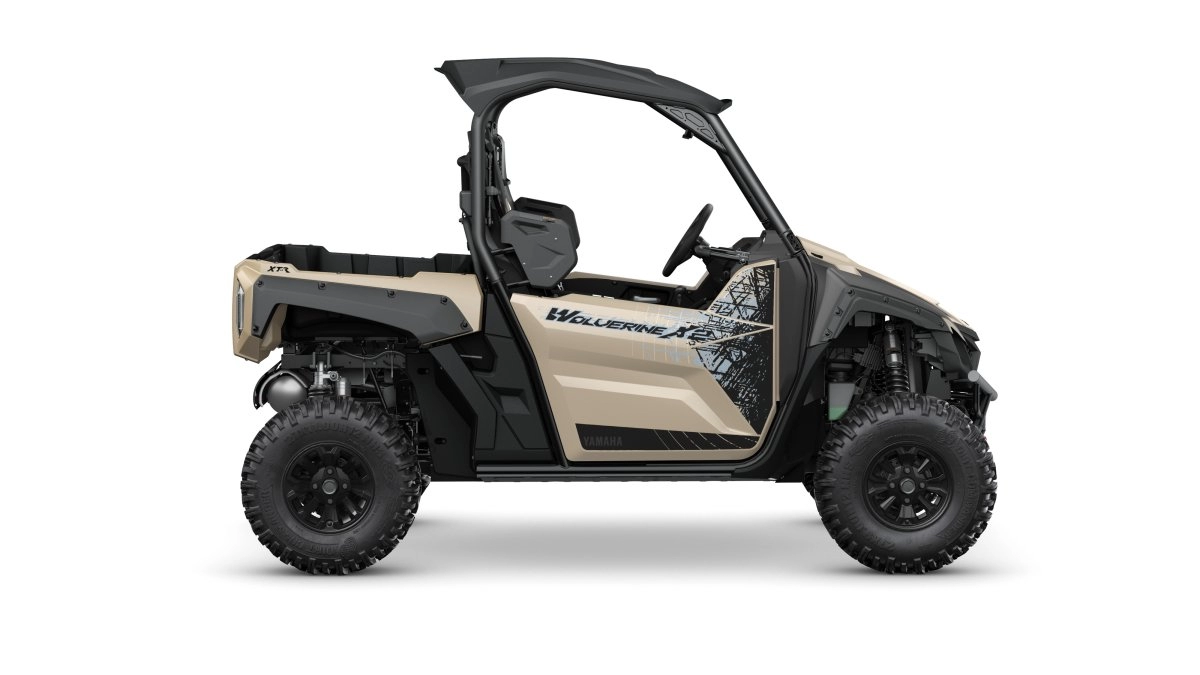

2023 WOLVERINE X2 850

KEY FEATURES

CAPABILITY

Adventure Pro Ready

The Wolverine X2 850 XT-R comes pre-wired for Yamaha’s exclusive Adventure Pro® GPS system, unlocking the next level of trail-ready navigation. This state-of-the-art GPS unit combines a range of functions into a single, rugged 7-inch full-color display. Search, download, record and share trail routes. With Yamaha’s uniquely integrated software, the Adventure Pro system displays advanced vehicle data with exceptional clarity.

Class-Leading Electric Power Steering

Yamaha’s Electric Power Steering (EPS) provides the industry’s best balance of steering assist and positive feedback with light steering and speed-sensitive response for minimized fatigue.

Compact and Nimble Chassis

Designed for maneuverability, the Wolverine X2 850 XT-R chassis is super agile, making tight trails a breeze with lightweight steering to select the ideal line when tackling obstacles. With an upswept underbody design, the Wolverine X2 850 XT-R boasts plenty of ground clearance and big approach and departure angles to clear challenging terrain. For enhanced response in tough terrain, the rear A-arms minimize camber changes across the suspension travel.

Extreme Terrain Tires

Extreme terrain calls for tires that handle the abuse while providing confidence-inspiring grip and feedback. The Wolverine X2 850 XT-R rolls on 27-inch GBC® Dirt Commander radial tires that not only improve ground clearance and traction but feature rugged 8-ply construction for exceptional durability.

Maximum Versatility

The Wolverine X2 850 XT-R features a tilting cargo bed to simplify hauling duties. Built with hydraulic assistance and a robust latch system, the bed transports up to 600 pounds with multiple steel tie-down points to secure cargo or attach accessories. Add in a full 2,000 pounds of towing capacity from the standard 2-inch receiver and the Wolverine X2 850 XT-R is ready to work when you are.

On-Command® 4WD

Industry-exclusive three-position On-Command® 4WD system lets you switch between 2WD, limited-slip 4WD and fully locked differential 4WD. Unlike competitors’ automatic 4WD systems, On-Command® puts the driver in full control to make the most of available traction in various types of terrain.

Plush Suspension

The Wolverine X2 850 XT-R features well-damped suspension at all four corners for improved chassis control and handling feel. High performance KYB® piggyback shocks built specifically for Yamaha are fully adjustable with spring preload, rebound, and high- and low-speed compression damping to allow tuning to suit a wide range of driver preferences and conditions.

Powerful All-Wheel Disc Brakes

Large 207mm vented disc brakes with two-piston calipers provide exceptional stopping power on all four wheels with excellent feel.

Responsive and Reliable Ultramatic® Transmission

Yamaha’s Ultramatic® transmission is the most advanced—and durable—CVT drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced wear, and a sprag clutch delivers natural all-wheel engine braking.

Smooth and Powerful Twin-Cylinder Engine

The Wolverine X2 850 XT-R is powered by an 847cc DOHC eight-valve parallel-twin engine featuring a full range of advanced Yamaha technology. Forged pistons and connecting rods ensure durable high-rpm performance with Yamaha’s 270° Crossplane Concept Crankshaft for linear torque development and excellent power throughout the rpm range. To improve efficiency, the engine features a dry-sump design for a more compact layout and an offset cylinder block to reduce friction losses. Rubber engine mounts and a geared counterbalancer ensure smooth running from idle to redline.

Yamaha Chip Controlled-Throttle (YCC-T)

The Wolverine X2 850 XT-R engine utilizes YCC-T®, a drive-by-wire system that converts the driver’s commands into digital throttle control. Throttle response is further improved thanks to a quick-response servo motor, precision fuel injectors and a high-volume airbox with two-stage air filtration.

COMFORT

Accessory Ready

With nearly 600 watts of electrical output from the engine, the standard 12V DC port and multiple pre-wired accessory switches, the Wolverine X2 850 XT-R is ready for a wide range of accessories and add-ons.

Enhanced Ergonomics

High-backed seats with improved adjustability combine with updated pedal positions to create a more comfortable cockpit for drivers of various sizes, while compact shoulder bolsters, easily adjustable seatbelts and padded knee areas create a more comfortable perch for both driver and passenger. Multiple cup holders, high-traction floorboards, quick-adjust driver seat and steering column round out the amenities.

LED Lighting

The Wolverine X2 850 XT-R features LED headlights and taillights for brilliant illumination of what's ahead, increased visibility from behind, long life and minimal power draw.

Plush Suspension

The Wolverine X2 850 XT-R features well-damped suspension at all four corners for improved chassis control and handling feel. High performance KYB® piggyback shocks built specifically for Yamaha are fully adjustable with spring preload, rebound, and high- and low-speed compression damping to allow tuning to suit a wide range of driver preferences and conditions.

Smooth, Quiet Powertrain

Thanks to helical-cut drivetrain gearing, the rubber-mounted and counterbalanced engine, and a variety of noise- and vibration-reducing inserts around the cabin, the Wolverine X2 850 XT-R is one of the smoothest and quietest recreational Side-by-Sides ever built. Converse with your passenger or simply enjoy the unparalleled refinement on extended adventures.

Superior Mud Protection

The upgraded, fully-enclosed doors and high, wide fenders ensure that mud and rocks stay outside the cabin, so you and your passenger can enjoy the ride in any conditions.

CONFIDENCE

Advanced Instrumentation

The premium blue backlit, all-digital meter with a large dimmable readout gives the driver a complete picture at a glance. Vehicle status and warnings are clearly displayed, along with easily accessed odometers and trip and hour meters.

Built Real World Tough®, Assembled in the USA

As with other Yamaha Side-by-Sides and full-size ATVs, the Wolverine X2 850 XT-R is assembled in the USA to meet Yamaha’s exacting standards for durability and reliability.

Full Underbody Skid Plates

To ensure gnarly terrain doesn’t stop you, full skid plates protect the entire underbody of the Wolverine X2 850 XT-R, from the front differential to the rear gear case. Skid plates also include convenient service points to access fluid drain locations without removing the guards.

Industry’s Most Durable CVT

The Wolverine X2 850 XT-R transmission uses its own cooling intake to maintain proper temperatures, an oversized belt to handle the torque of the large engine and Yamaha’s unique sprag clutch to maintain constant belt tension. The end result is a drivetrain built for years of trouble-free service that leaves the competition in the dust, and is backed by the industry's only 10-Year V-Belt Limited Warranty.

Reliable Engine Lubrication and Cooling

With a large oil capacity circulating in the dry-sump system, a liquid-cooled oil cooler and a large radiator with integrated blower, the Wolverine X2 850 XT-R powerplant is able to handle the toughest conditions without complaint.

Speed Management System

The Wolverine X2 850 XT-R comes standard with a Speed Management System which allows the owner to limit the vehicle to a top speed of 25 mph, making it ideal for work sites or other special operating conditions.

TOP FEATURES

Adventure Pro Ready

The Wolverine X2 850 XT-R comes pre-wired for Yamaha’s exclusive Adventure Pro® GPS system, unlocking the next level of trail-ready navigation. Combining high-precision GPS with social integration and vehicle information, the Adventure Pro system redefines "state of the art."

New Generation Style

Aggressive Wolverine X2 850 XT-R styling also features sleek, modern door, roof support and a suntop design to give the vehicle a bold, sporty look. Compact shoulder bolster and cut outs provide seamless integration of accessory speakers, and a premium blue backlit meter makes reading the display a breeze while adding an additional touch of style.

Potent 847cc Twin-Cylinder Powerplant

Featuring drive-by-wire throttle, a 270-degree crankshaft design and lightweight internals, the Wolverine X2 850 XT-R shares technology with Yamaha’s class-defining sportbikes for thrilling performance and unmatched refinement on every ride.

Real World Tech

Yamaha’s technological advantages are found in every Wolverine X2 850 XT-R: plush adjustable suspension, driver-centric On-Command® 4WD, ultra-reliable Ultramatic® CVT drive system and industry-leading Electric Power Steering.

Spacious, Flexible Ergonomics

The Wolverine X2 850 XT-R takes comfort to a new level by offering high-back seats and plenty of legroom with a soft-touch knee area. The driver's seat is adjustable and all seatbelts are adjustable without the need for tools for secure, comfortable seating wherever your adventure leads.

Unequaled Versatility, Unparalleled Refinement

The ultimate outdoor adventure partner, the Wolverine X2 850 XT-R offers the perfect balance of work-ready capability, refined comfort and trail-proven poise. The robust frame with upper and lower A-arms further boost the Wolverine X2 850 XT-R's ability over rough terrain, while the top-shelf XT-R trim includes durable 27-inch radial tires, adjustable KYB® piggyback shocks, a WARN® VRX 45 winch, and a durable painted body and graphics package for additional off-road confidence.

XT-R Package

The Wolverine X2 850 XT-R is equipped with a capable and aggressive-looking package for extreme terrainability, including rugged radial tires, heavy-duty WARN® winch, advanced suspension, rearview mirror, and a stylish paint and graphics scheme.

*Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
