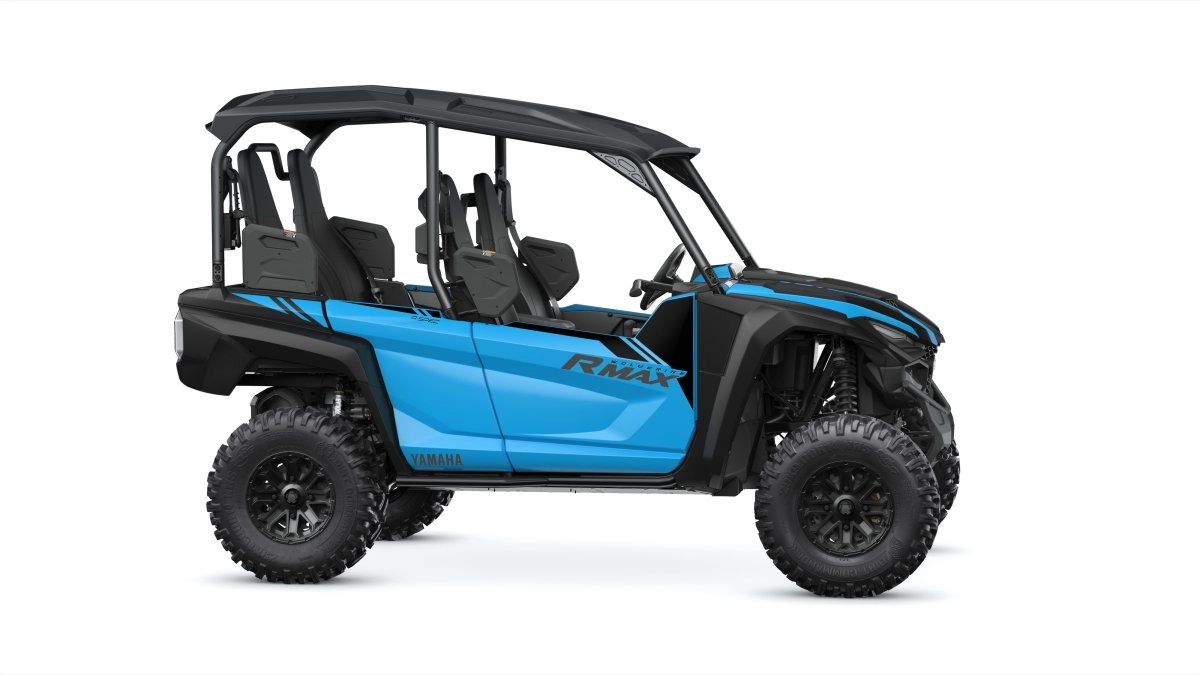

2023 WOLVERINE RMAX4 1000

SPECIFICATIONS

ENGINE

Engine Type	999cc Liquid Cooled, 4-Stroke, DOHC 4-Valve
Bore x Stroke	93.0mm×73.5mm
Compression Ratio	11.2:1
Fuel Delivery	Yamaha Fuel Injection (YFI); dual 48mm throttle bodies
Transmission	Ultramatic V-Belt with all-wheel engine braking; L,H,N,R
Final Drive	On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
Fuel Capacity	9.2 gal

CHASSIS

Suspension/Front	Independent double wishbone with anti-sway bar, FOX® QS3 piggyback shocks; 14.2-in travel
Suspension/Rear	Independent double wishbone with anti-sway bar, FOX® QS3 piggyback shocks; 13.3-in travel
Brakes/Front	Dual hydraulic disc
Brakes/Rear	Dual hydraulic disc
Tires/Front	AT29 x 9-14 GBC® Dirt Commander
Tires/Rear	AT29 x 11-14 GBC® Dirt Commander

DIMENSIONS

Stance Width	64 in* Outermost wheel rim
LxWxH	128.1 in x 66.0 in x 83.1 in
Wheelbase	90.2
Max. Ground Clearance	13.4 in
Fuel Capacity	9.2 gal
Wet Weight***	2,022 lbs

OTHER

Warranty	6 Month (Limited Factory Warranty) - Yamaha 10-Year Belt Warranty

*Manufacturer's Suggested Retail Price (MSRP) shown. Does not include tax, title, prep or destination charges. Actual prices set by dealer.
**Fuel Economy is estimated.
***Wet weight includes the vehicle with all standard equipment and all fluids, including oil, coolant (as applicable) and a full tank of fuel. It does not include the weight of options or accessories. Wet weight is useful in making real-world comparisons with other models.
